BOSCO Control Console TeKno

Advanced Design, Modularity and Ergonomics for 24/7 Control Rooms


gallery

request info

The Bosco TeKno Control Console is a professional operator workstation designed for control rooms, command centers and mission-critical environments operating 24 hours a day, 7 days a week.

Robust, ergonomic and modular, TeKno allows for fully customized workstation configurations, integrating monitor mounting systems, IT equipment and efficient cable management solutions. Its distinctive, minimalist design brings a refined, contemporary look to operational environments, making it an ideal choice for control rooms that demand both technical performance and visual appeal.

Designed for security and surveillance control rooms, industrial control centers, power generation facilities, oil & gas operations, transportation networks and command centers, TeKno combines modern aesthetics with the functionality required for continuous operations.

The TeKno control room workstation is designed to meet the ergonomic requirements of ISO 11064 and the recommendations of EEMUA 201 (when equipped with the optional motorized height-adjustable frame), supporting a safe, comfortable and efficient working environment.









CONTROL CENTER TEKNO OUR WORKS











DESIGN AND RELIABILITY 24/ 7 PERFORMANCE CONTROL CONSOLES FOR CRITICAL ENVIRONMENTS

  • Load distributed on the TOP up to 200kg (console with motor).
  • Load distributed on the TOP up to 500kg (console without motor).
  • Motorized column 110-240Vac 50-60Hz (optional).
  • Anodized aluminum base and epoxy powder coated steel covers.
  • Column and cable duct colors RAL 7035, 6021, 5017, 5018, 9005 (optional).
  • Furniture colors RAL 9006.



STAND ALONE SOLUTION WITH WALL MONITOR AND VIDEO CONTROLLER

  • 24" or 27" monitor, complete with 3-joint mobile arm support, and slides on the work surface.
  • 50" or 55" monitors, videowall structure complete with supports and various accesories.
  • Top (work surface) to be chosen between 40mm chipboard wood or 18mm HPL stratified wood (optional on customer's specification).
  • Computer compartment under the work surface. Rack 19" (optional) 5 or 9 units in height.
  • 19" Rack structure in the central module for the housing of sockets, swhitch, Hu (optional on customer's specification).
  • Cable channel under the work surface.



Control Console TeKno







MODULAR CONSOLE STANDARD MODELS

The Control Console Tekno is a modular and adaptable technical desk. It is designed both to be a stand alone console or to be assambled in a more complex arrangement. The extreme customization of our consoles allows to create a wide range of command control center layouts: concave, convex, semi-circular and custom designed.

modular control console







MODULAR CONSOLE LINEAR LAYOUT

CONTROL CONSOLE TEKNO LINEAR LAYOUT

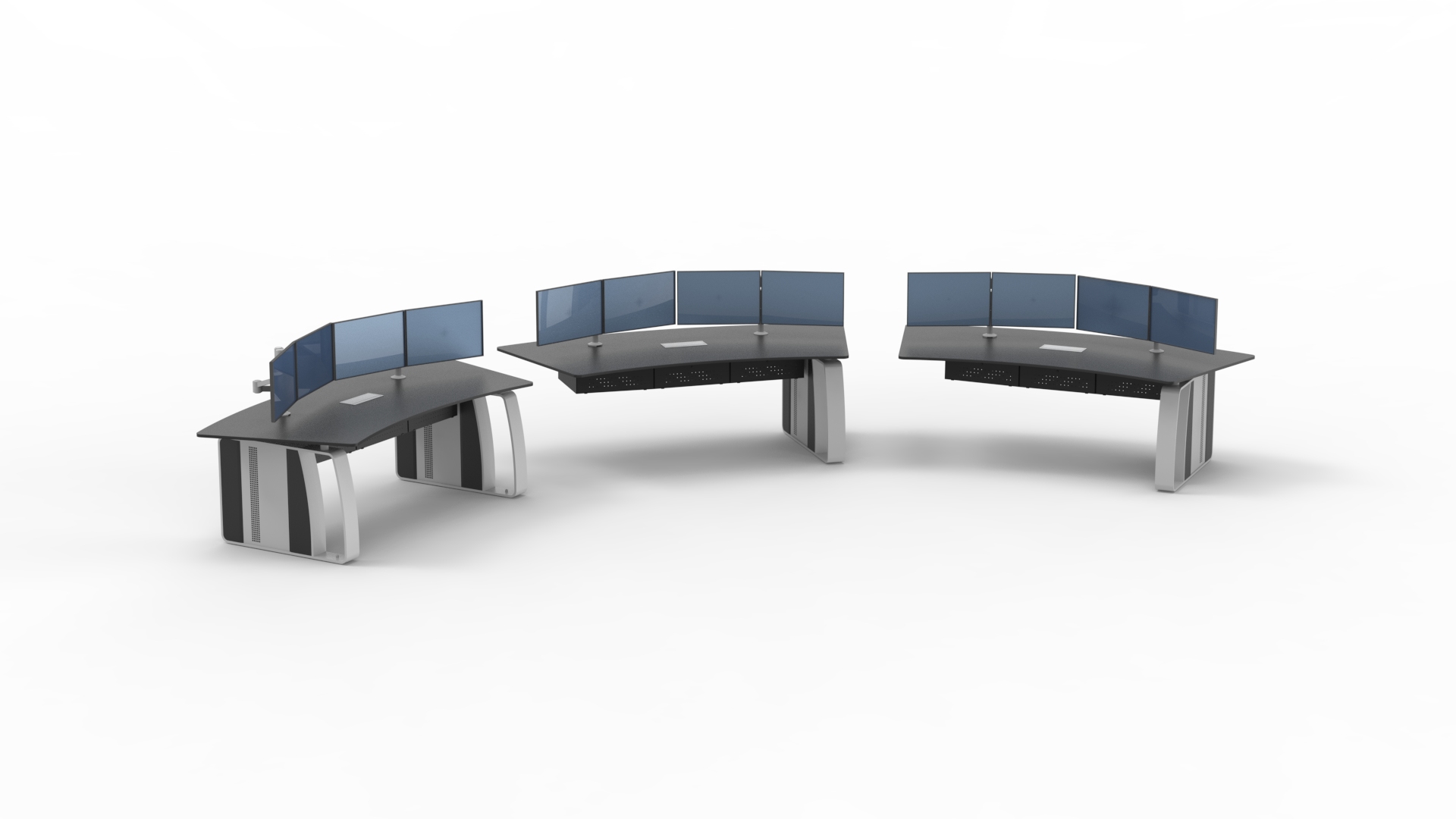

MODULAR CONSOLE CIRCULAR LAYOUT

CONTROL CONSOLE TEKNO CIRCULAR COMPOSITION







WIRING AND EQUIPMENT  MAXIMUM EFFICIENCY AND ORGANIZATION





CONTROL CONSOLE TEKNO WIRING AND EQUIPMENT HOUSING

FRONT VIEW OF A 2 OPERATOR CONSOLE  -  Equipped with 2 Canal Racks and 1 Compartment accessorizable with rack 19"









 INTERNAL LEG VIEW - Distribution PDU with magnetothermic switch, cable anchoring.









SIT AND STAND  MOTORIZED LEG

Control Console Tekno has a motorized lifting leg to raise the working surface from 760mm to 1200mm. With a thrust force of 3000N (300Kg) it ensures maximum freedom of movement and perfectely fits every operator. A Sit-Stand system is higly recommended by ergonomic standards, especially in continuos work environments such as command control centers, in order to reduce physical stress and fatigue.



control console tekno with sit stand system





SECTORS OF APPLICATION

PHOTOGALLERY

CONTROL CONSOLE TEKNO
