BOSCO LED Wall B-COB

Our B-COB LED Wall is the ideal solution for those seeking a control room video wall that offers a perfectly unified image and a futuristic aesthetic. Its ultra-smooth surface and bezel-free design create an unparalleled viewing experience, combining durability and visual impact.

The new COB technology (Chip On Board), unlike previous LED technologies, offers high resolution thanks to a very small pixel pitch (distance between pixels), opening the door to control rooms' LED wall options and offering a superior alternative to traditional LCD video walls.

The LED wall is a modular screen composed of individual panels that, when joined, create a continuous, seamless video surface. This feature makes it perfect for covering any space and transforming it into a striking digital surface.

LED WALL B-COB FEATURES

No Bezel, Seamless Image

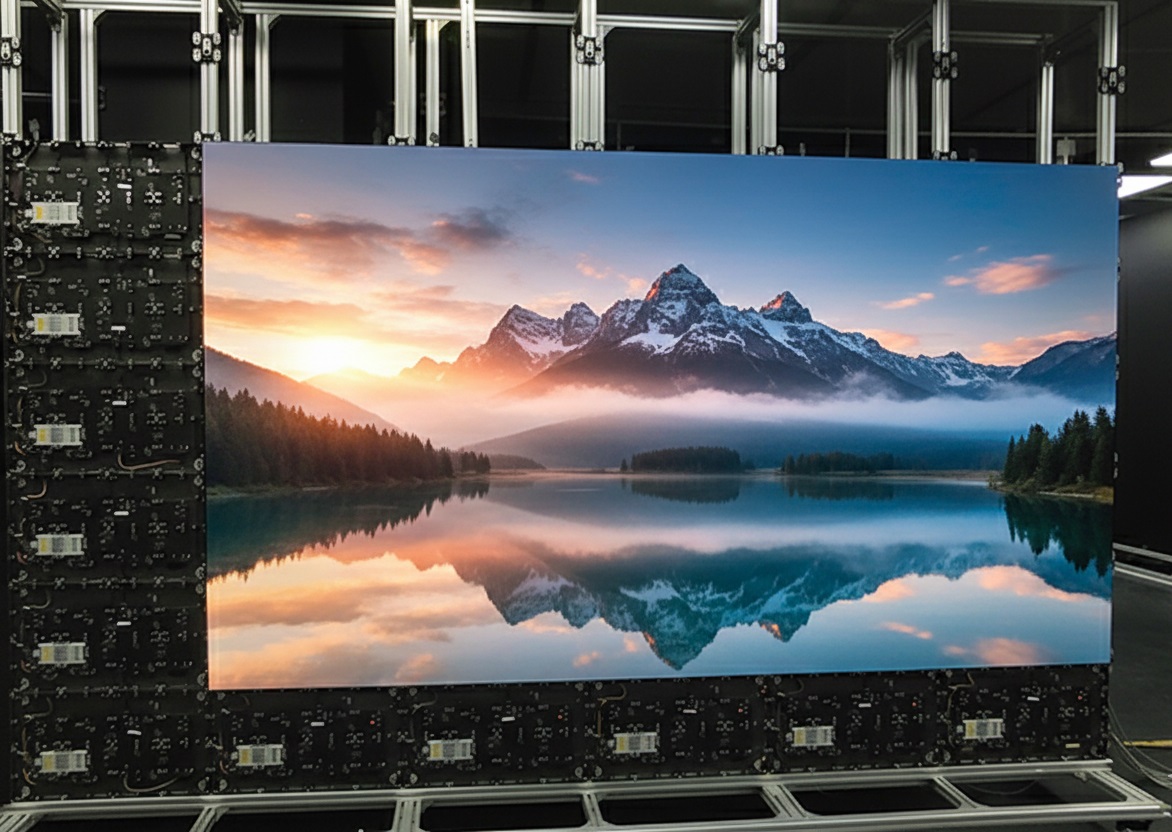

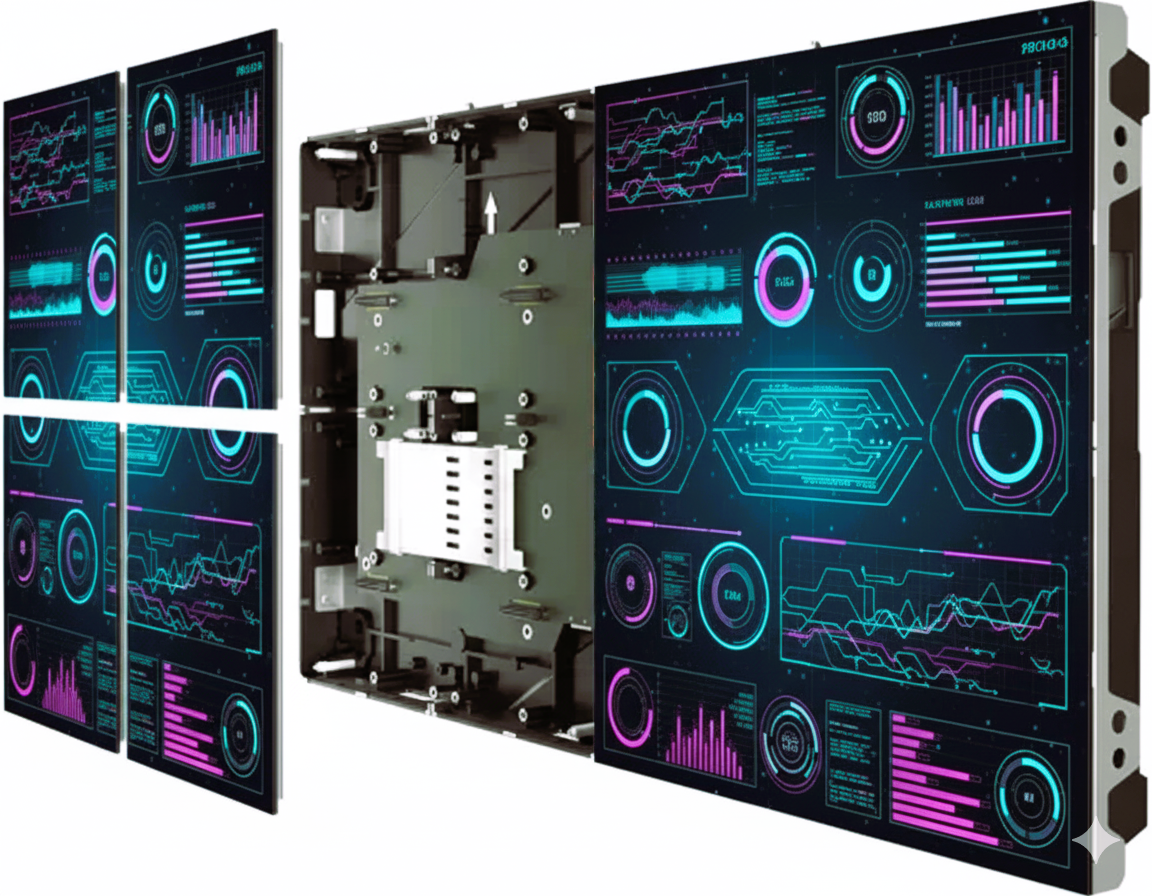

The Bosco B-COB LED Wall ensures an unparalleled visual experience thanks to a seamless join between the modules. The floating connection technology between the module and the cabinet eliminates alignment errors, allowing for quick and flawless screen assembly.

Thanks to a high-precision die-cast aluminum housing and CNC machining, each COB LED video wall offers exceptional flatness and visual continuity, overcoming the typical problems of other displays.

High Pixel Density, High Resolution

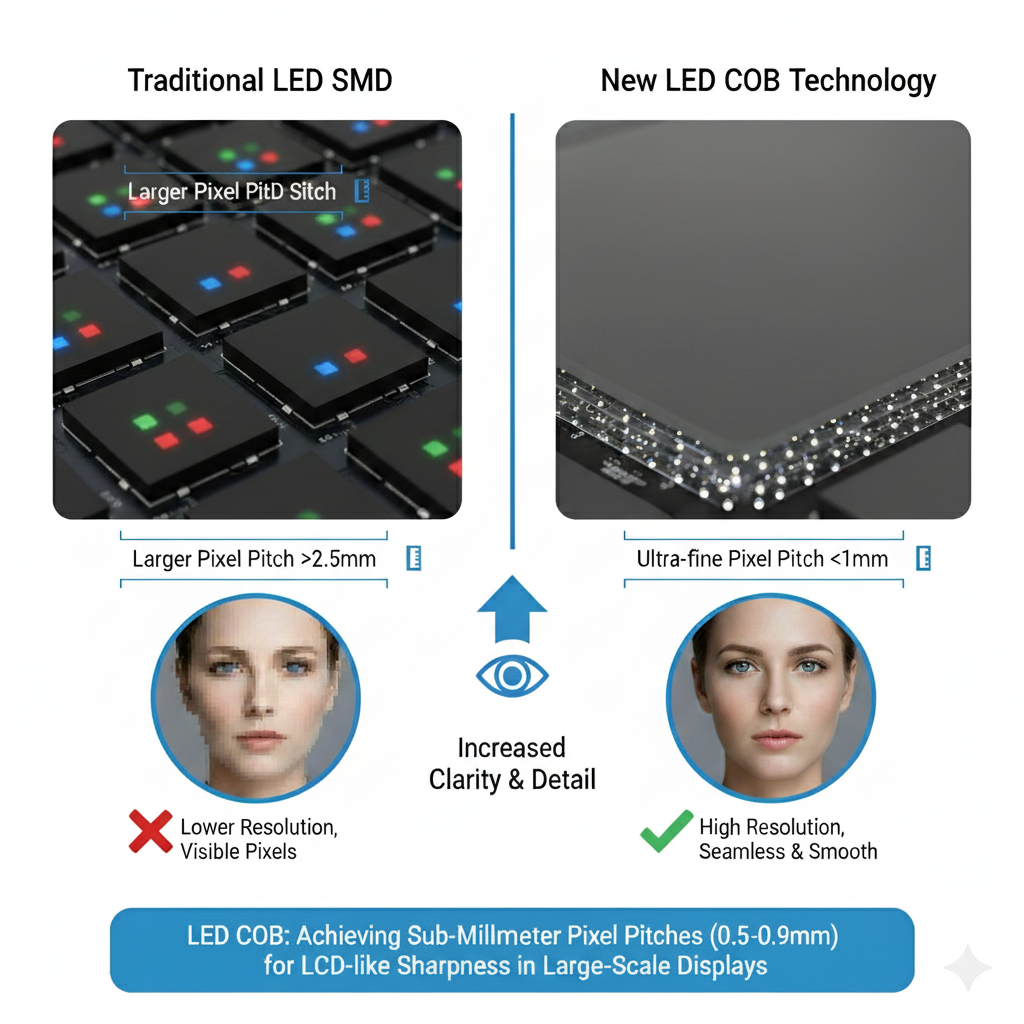

The B-COB LED Wall for control rooms uses COB (Chip On Board) technology, which stands out for its high resolution. Thanks to the COB technology's packaging, multiple LED chips can be combined on a single substrate to achieve a higher pixel density, meaning more pixels per square inch (PPI) and a sharper image.

The COB LED display has a high pixel density, with pixel pitches of less than one millimeter, up to 0.5 and 0.7 mm, close to other video solutions such as LCD. Images appear continuous and detailed, and the panel surface is smooth and uniform.

Quick and Versatile Installation

B-COB LED Walls offer versatile and convenient installation options to suit any environment. They can be easily wall-mounted or recessed for a seamless look. To make installation even easier and more convenient, solutions such as the all-in-one frame are available. For a more dynamic and impactful design, the displays can be installed with a curved option. Additionally, for greater stability, a mounting option with H-shaped frame is available.

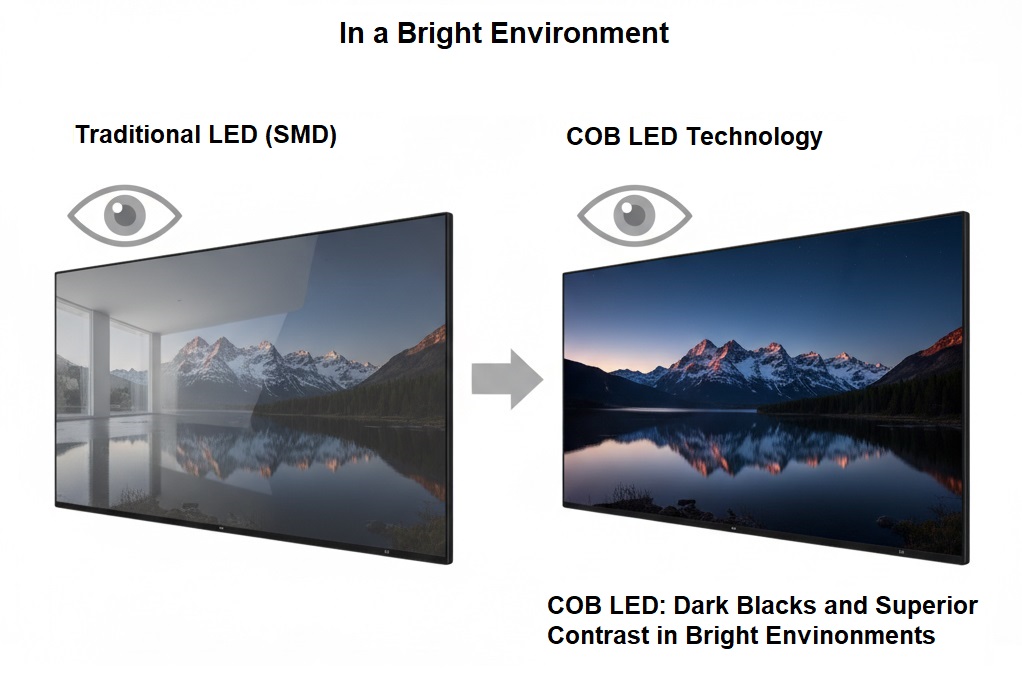

Deep Blacks, Greater Contrast

In COB technology, LED chips are directly encapsulated in a black substrate (PCB) made of black polymer material. The black substrate better absorbs ambient light hitting the screen. This reduces reflections and scattered light, contributing to a deeper black, especially in bright environments.

Furthermore, because the chips are closer together and encapsulated, there is less light spillover between adjacent pixels. This allows for more precise control over the light emitted, preventing surrounding pixels from being "illuminated" by active pixels, contributing to a purer black.

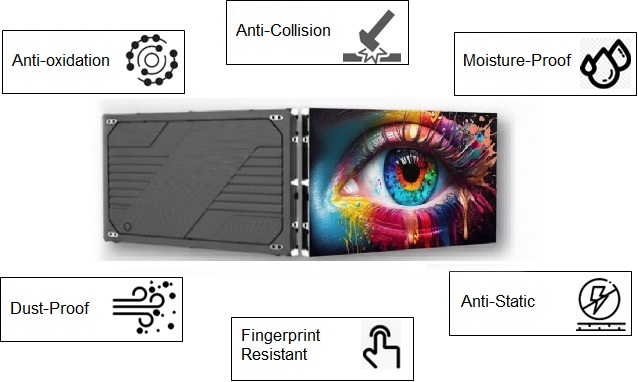

High Resistance and Reliability

COB LED technology represents a true revolution in LED wall construction, offering comprehensive and superior protection compared to traditional LED screens. Unlike SMD displays, where LEDs are exposed and vulnerable, COB technology protects them from:

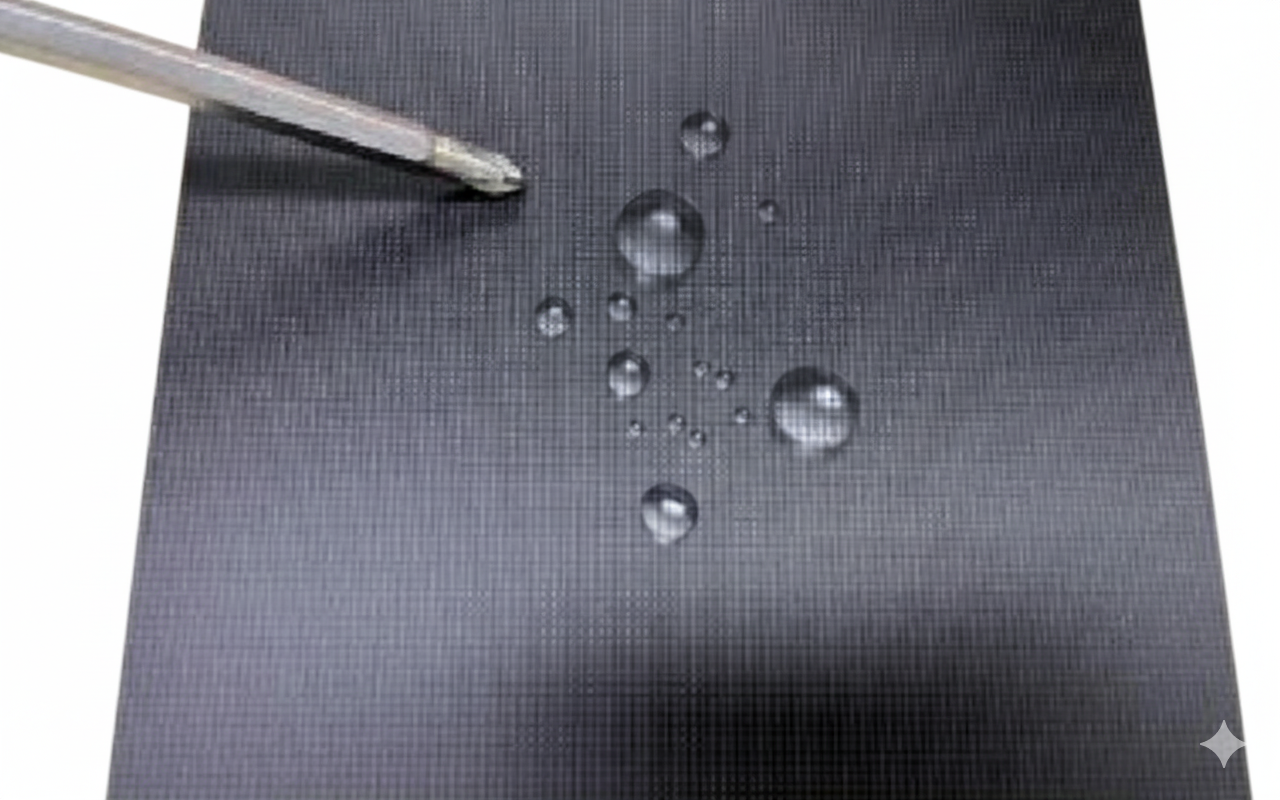

• Moisture and dust: The protective layer seals the pixels, making the screen waterproof and dustproof.
• Collision and oxidation: The robust and compact surface protects the chips from impacts and physical damage.
• Static and blue light: Integrated protection minimizes the risks associated with static electricity and blue light.

Thanks to this innovation, COB LED displays are extremely durable and easy to maintain. Their smooth surface can be cleaned simply with a damp cloth. Furthermore, improved heat dissipation ensures a longer lifespan and reduces the risk of failure. With COB technology, you get a robust, reliable, and future-proof display solution.

Wide Viewing Angle and Superior Quality

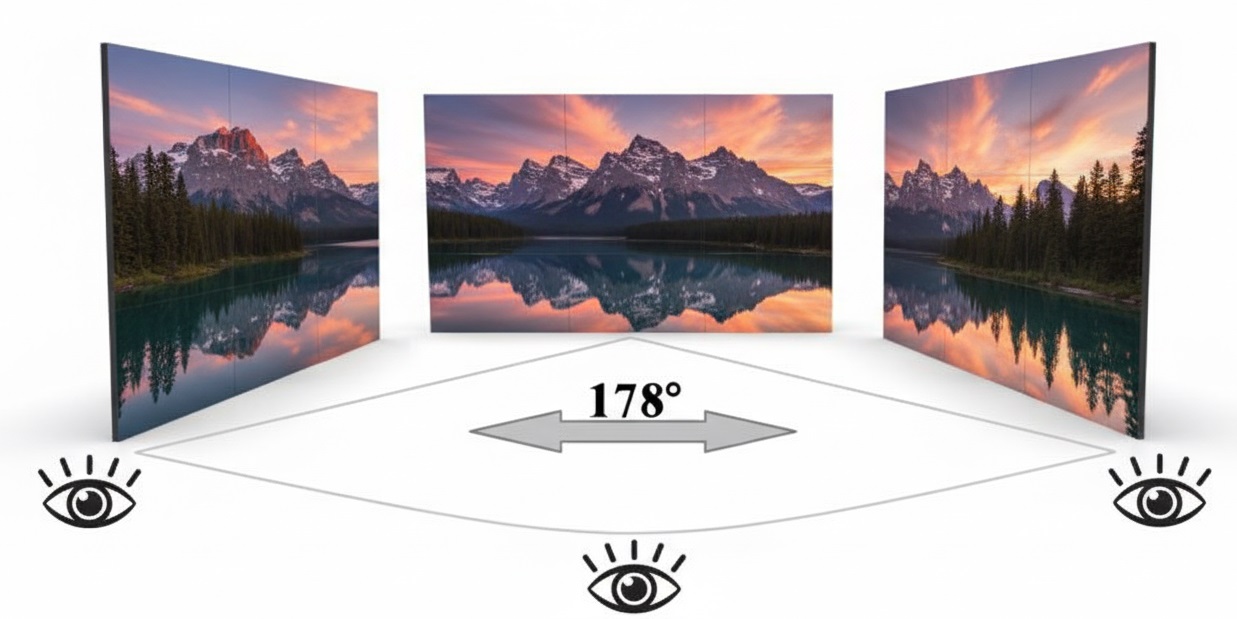

Our B-COB LED Walls offer an ultra-wide viewing angle (178°), both horizontally and vertically, ensuring images maintain their quality from any perspective.

Thanks to softer light and reduced glare, these displays offer an exceptional viewing experience, with vivid, sharp images that are easy on the eyes.

LED WALL B-COB STANDARD MODULES

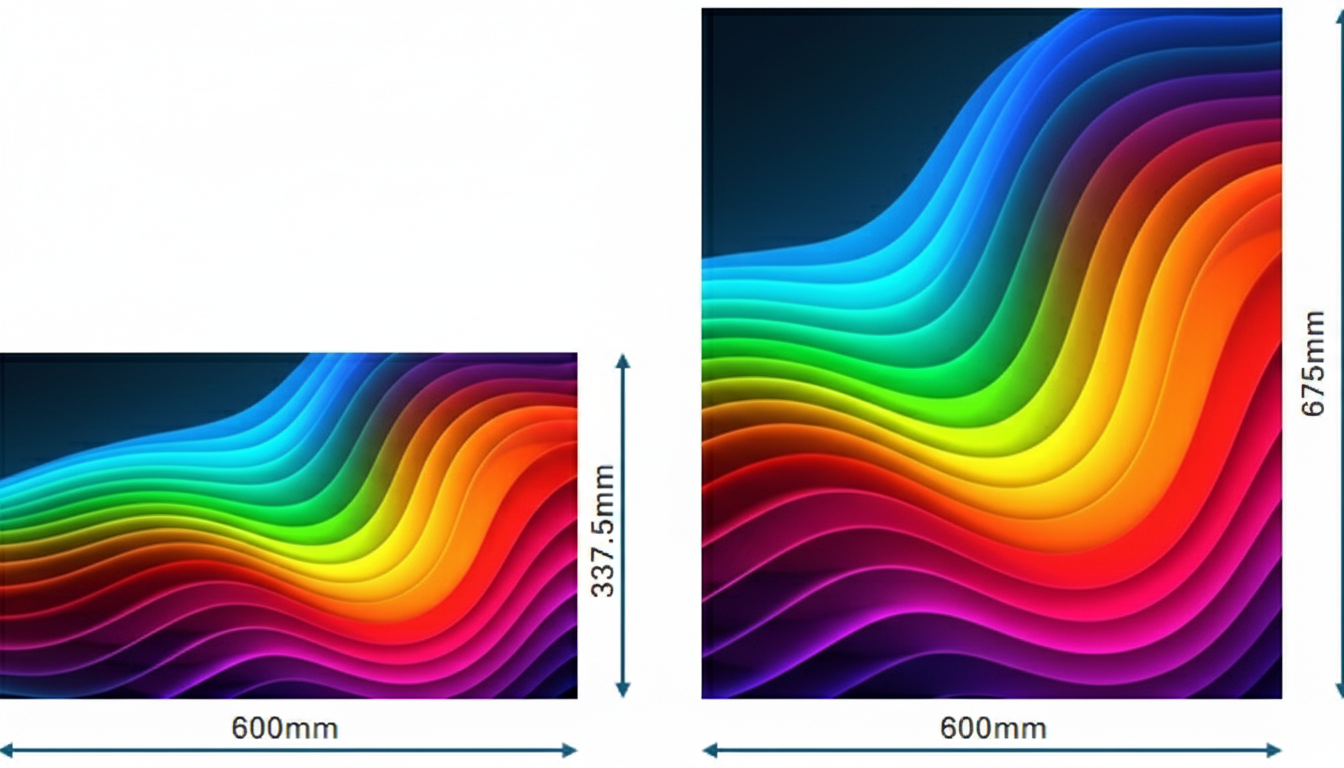

MODULAR LED WALL - 600 MM STEP MODULES

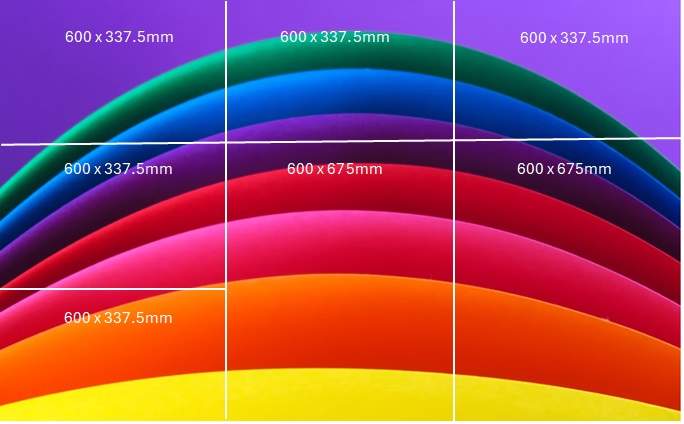

MODULAR LED WALL - COMPOSITION EXAMPLE

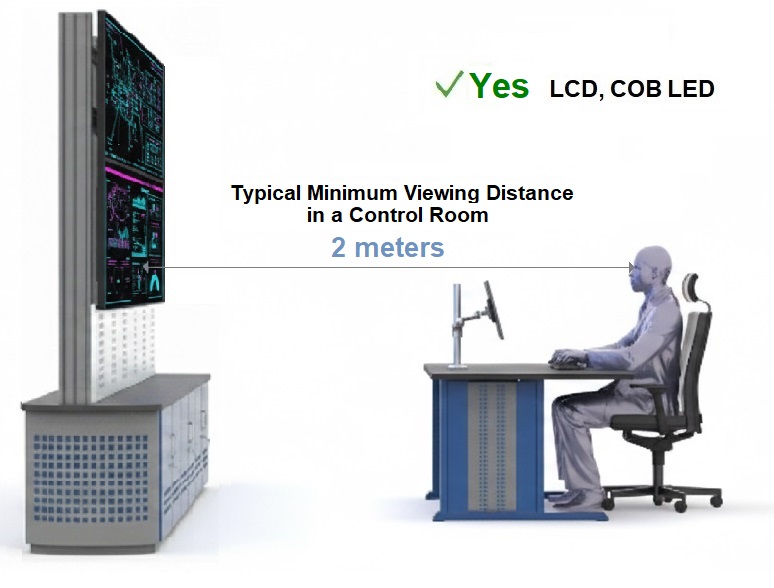

LED WALL B-COB VIEWING DISTANCE IN THE CONTROL ROOM

The high pixel density makes COB LEDs ideal for LED wall viewing from both close-up (1-2 m) and far away, providing sharp, continuous images. This aspect of COB LEDs is crucial in a control room where a viewing distance of approximately 2 meters is required for video wall information.

COB (Chip on Board) technology significantly improves the optical performance of LED displays by eliminating the visibility of individual pixels. This results in a softer, more comfortable image for the eyes, ideal for close-up and extended viewing.

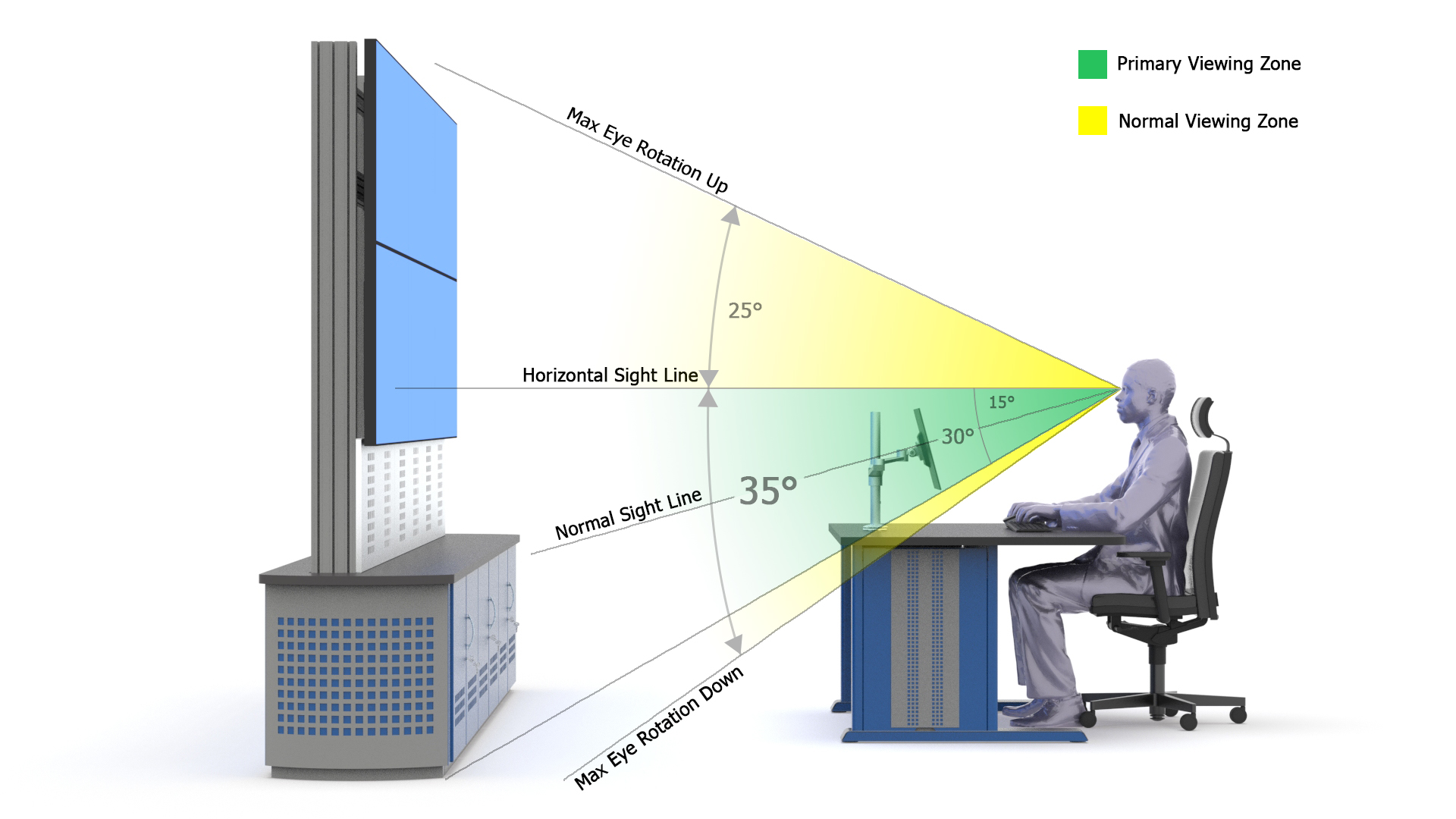

LED WALL B-COB ERGONOMICS

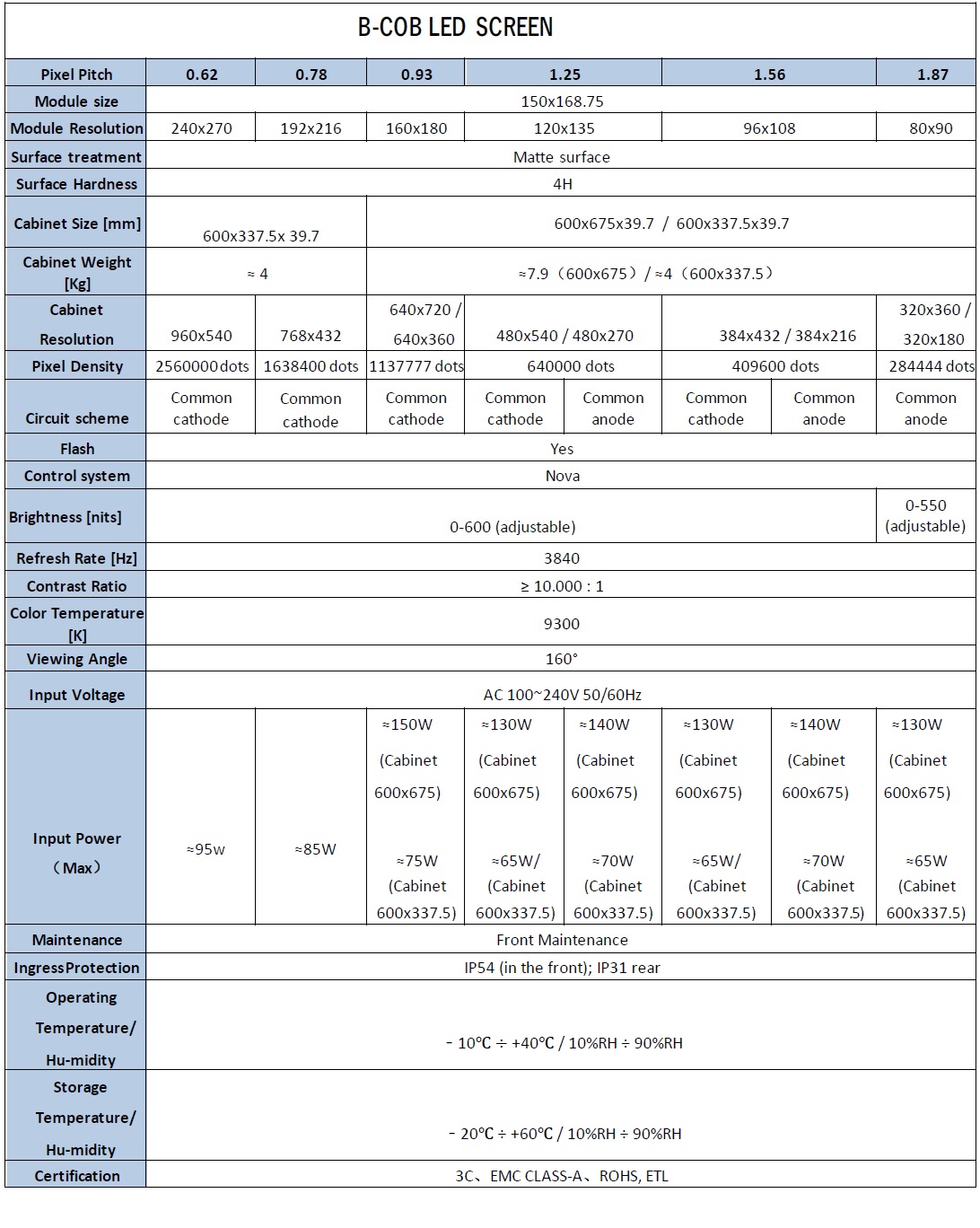

LED WALL B-COB TECHINICAL DATA
